Hydraulic Booster Compressors - CNG / Bio-CNG Applications

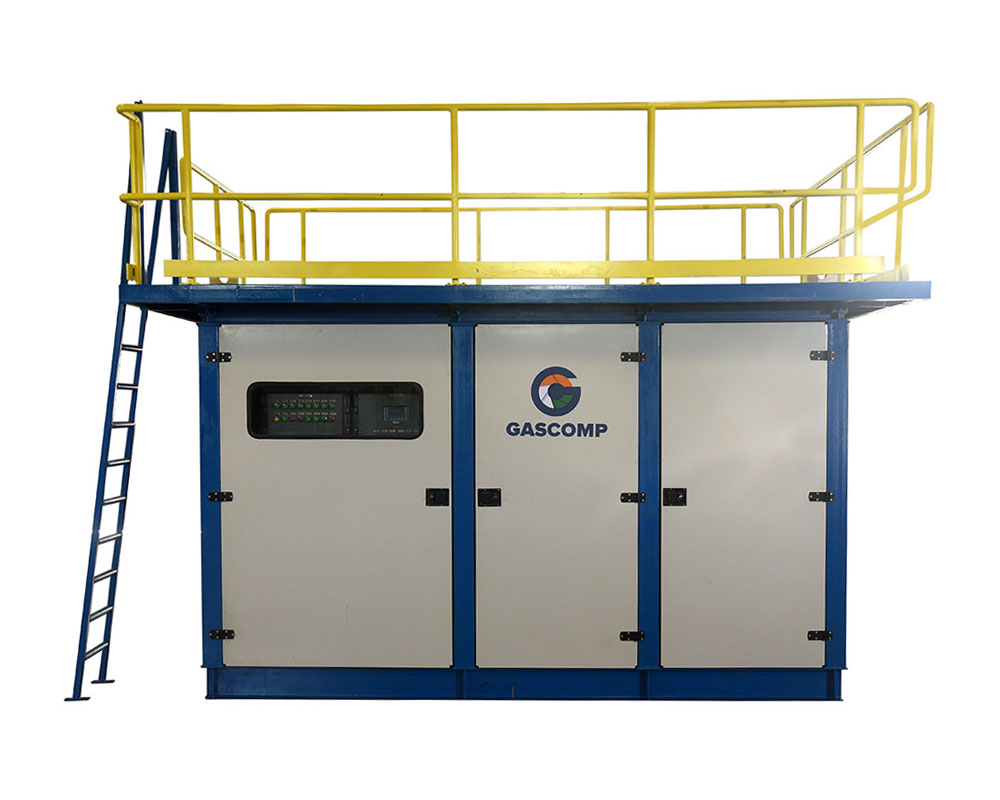

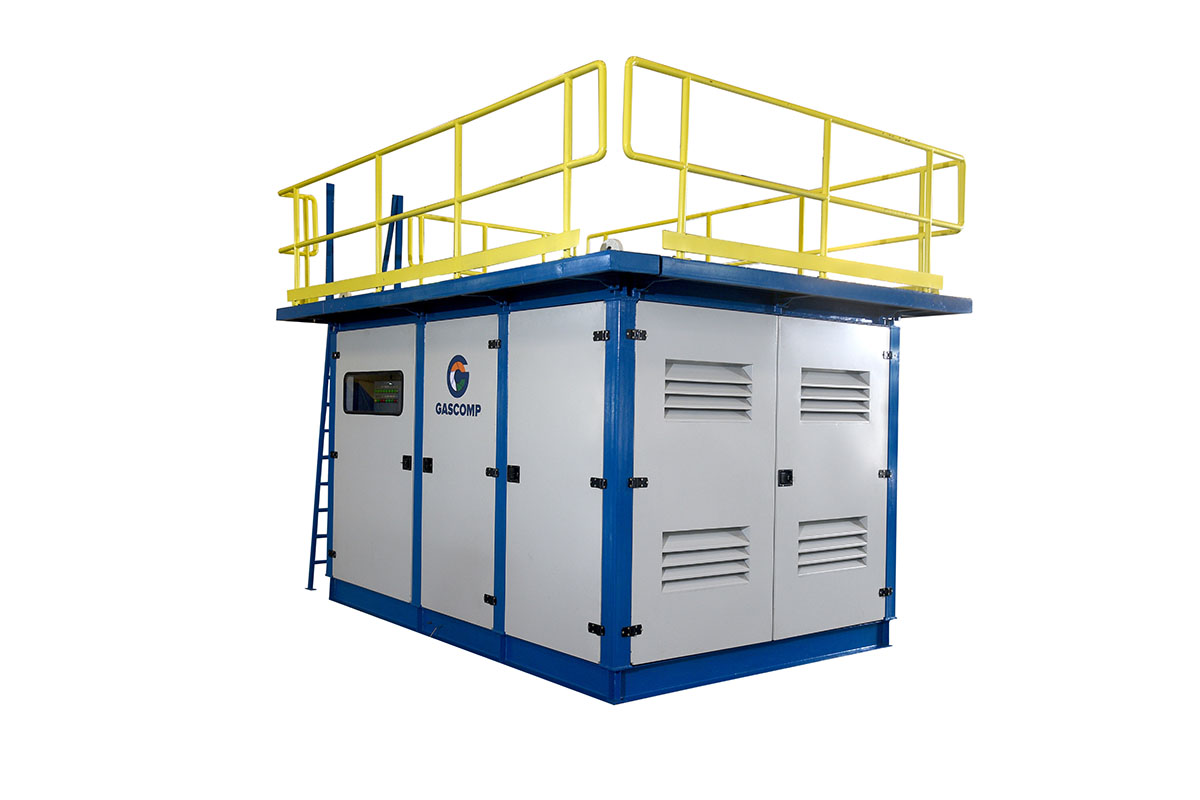

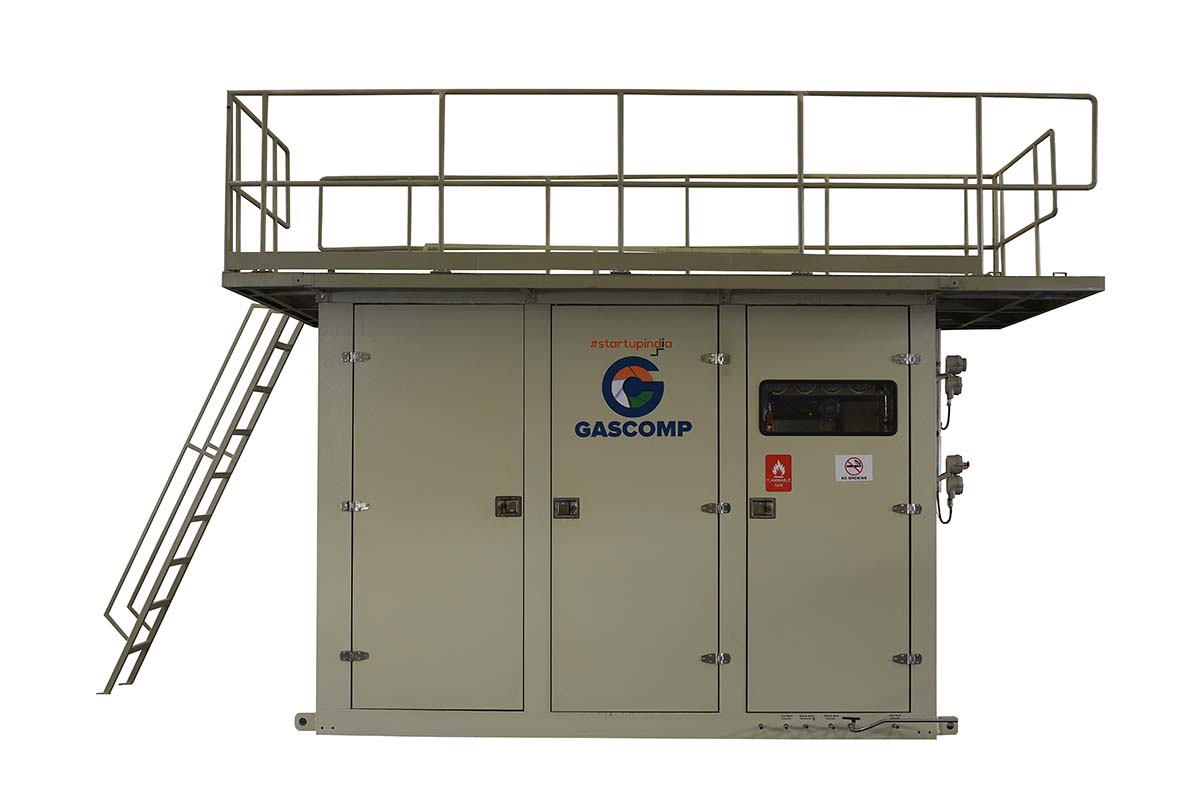

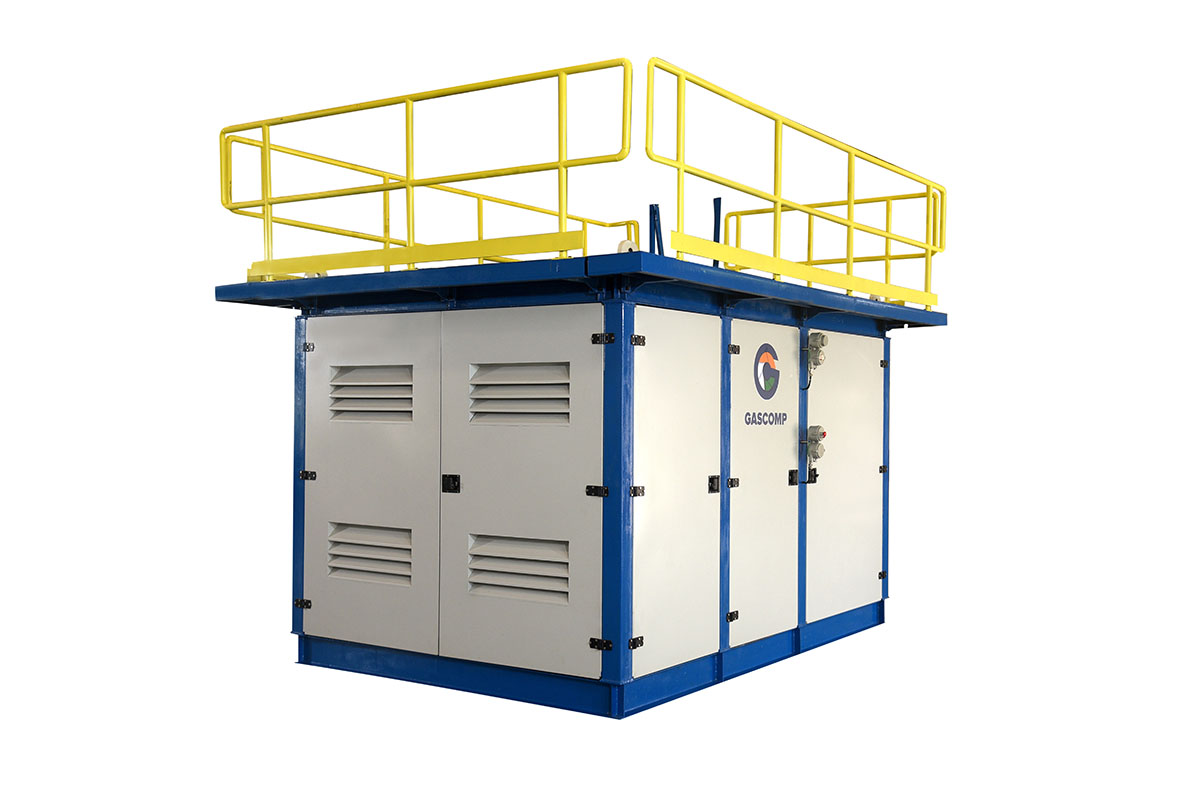

Hydraulic Booster Compressors - CNG / Bio-CNG Applications

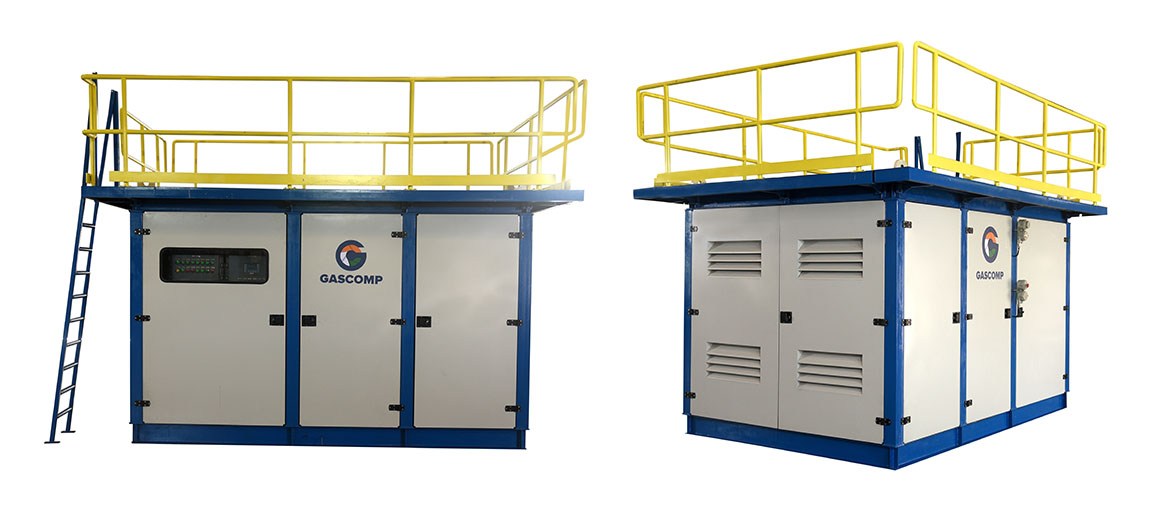

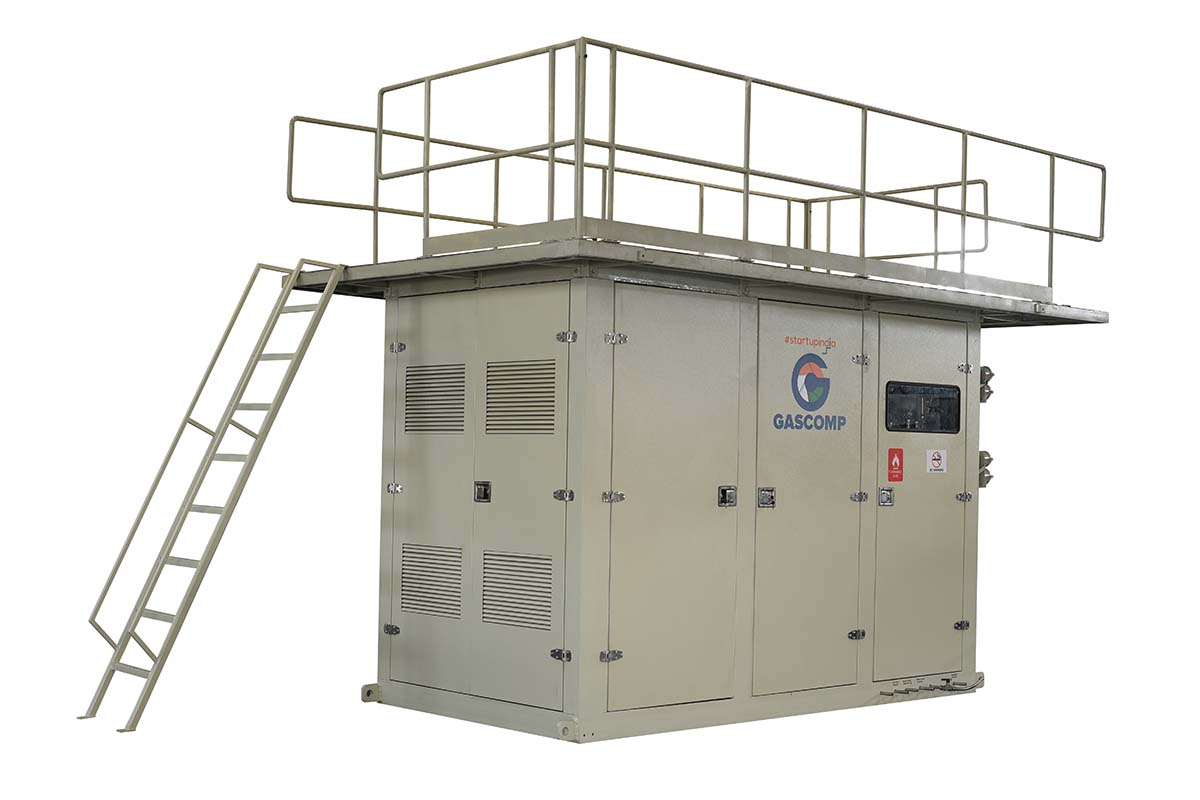

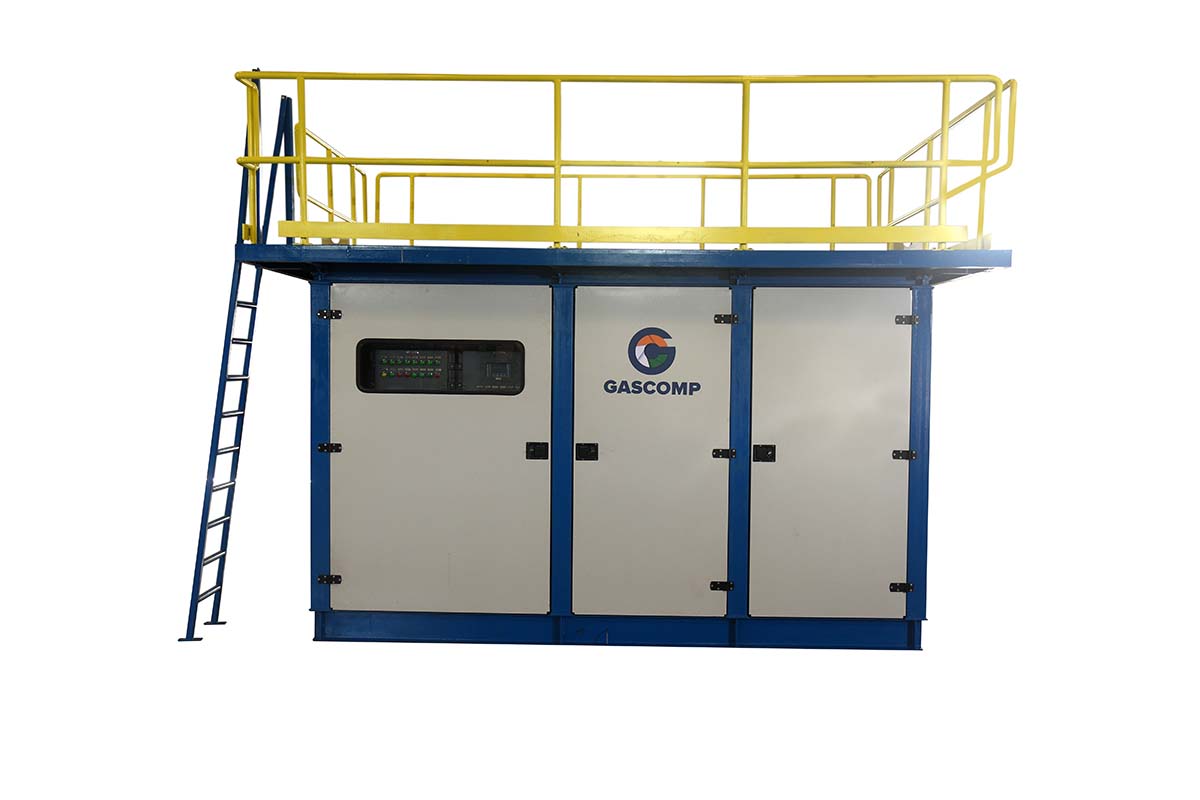

Hydraulic Booster Compressor GC-GRF70-BOOSTER are designed for Daughter Booster CNG stations and Hydrogen fuelling stations. These solutions allow users to operate a fuelling station where there is no gas supply through pipelines. They can be installed on trailer and used as Mobile fuelling stations (ie. Mobile CNG Stations).
The main characteristic of this compressor is its versatility with an inlet pressure range from 20 bar up to 200 bar and all the operations are automatic, without any external operation. These compressor units are activated by an oil pump which moves vertical/horizontal cylinders and fulfils the gas compression without having any rotating parts.
They are available in the following versions:
- One-stage or two-stages
- Electric power from 15 KW - 45 KW
- Air cooling or liquid cooling with closed loop circuit
MODEL
Model 1: 22 KW : GC-HY-CNG-22C & GC-HY-CNG-22WC
Model 2: 37 KW : GC-HY-CNG-37C & GC-HY-CNG-37WC
MAIN TECHNICAL FEATURES
- Compression stages: 1 - 2
- Inlet pressure range: 20 - 200 bar
- Outlet pressure range: 200 - 250 bar
- Flow: 200 - 1600 sm³/h
- Motor power: Electric 15 - 45 KW / Gas engine
- Type of cooling: AIR/GAS – WATER/GAS
SALIENT FEATURES
- Interstage pressure and temperature sensors (optional)
- Instrument panel with emergency stop button
- Safety valves on every stage
- Coalescent filter in inlet/outlet gas line (optional)
- Oil Tank with Heater (optional)
- Easy upgrade (22 KW ⇋ 37 KW)

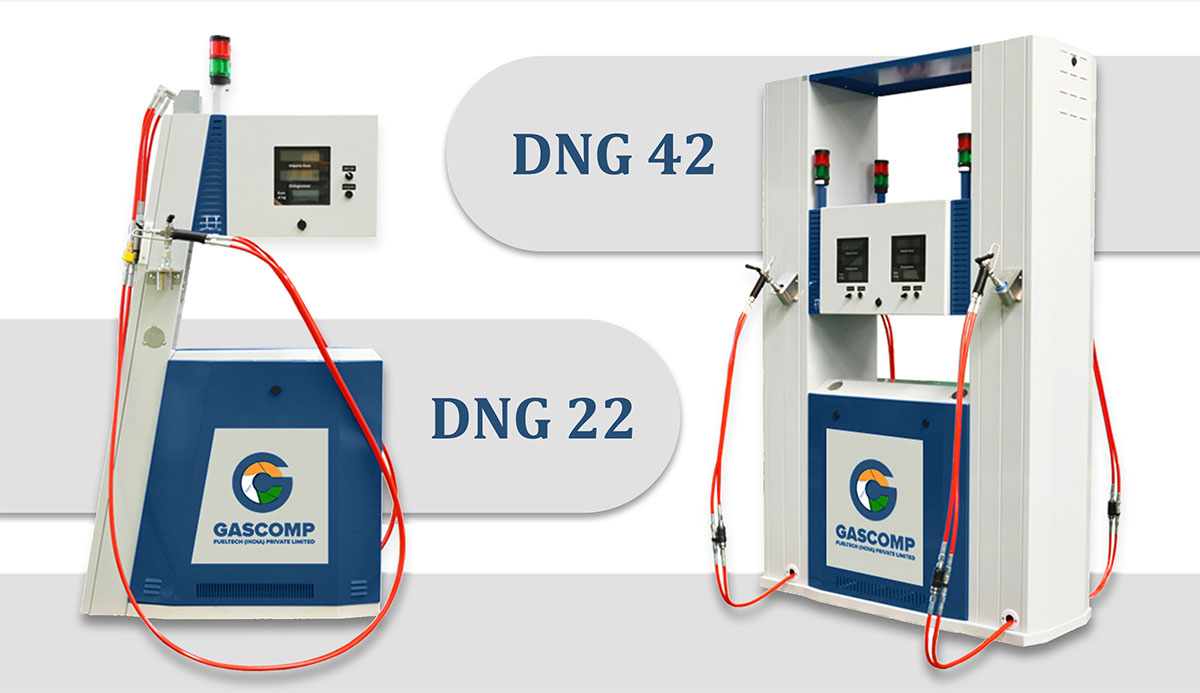

CNG Dispensers

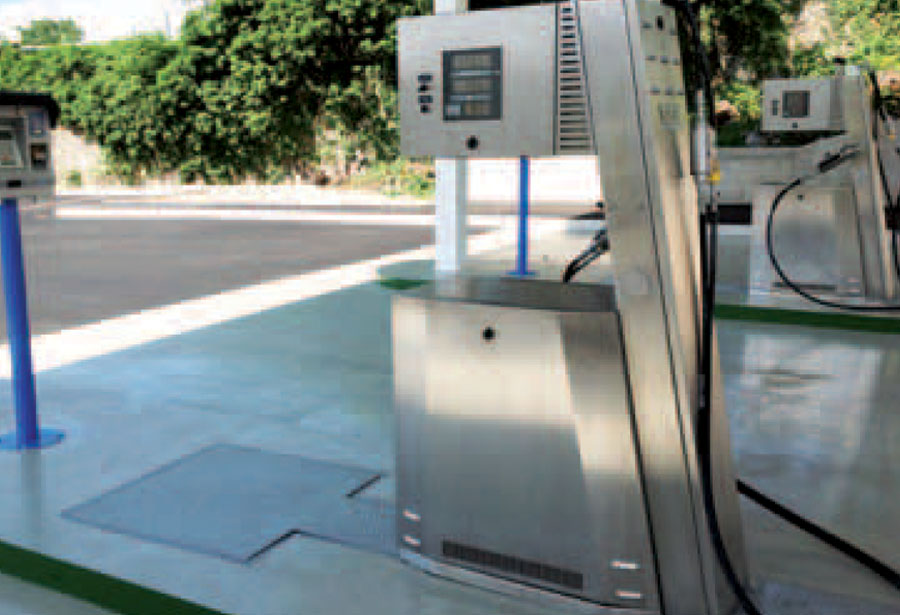

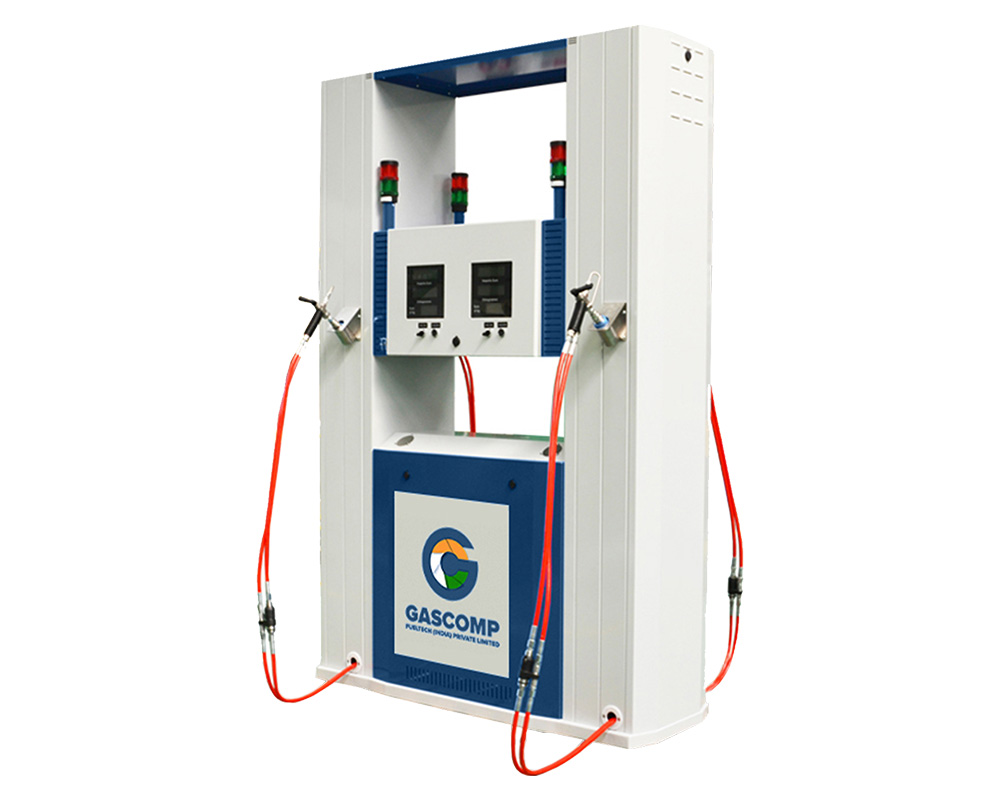

CNG Dispensers
The CNG dispensers are run by a latest-generation electronic processor and supplied with a LCD backlight display or a red LED display. These dispensers are built and tested in accordance with the valid European standards and with ATEX directive
CNG dispensers are the highest expression of Gascomp know-how and experience gained in these years in CNG sector and electronic process. Processor and software are realized internally and are constantly updated; in this way CNG dispensers are able to work with every protocol, upon customer’s request
MAIN TECHNICAL FEATURES
- Number of filling posts: 1 - 2 - 3 - 4
- Type of gas CNG with a density of: 0.65 - 0.87 Kg/m³
- Working temperature: -40 - +55°C
- Working filling pressure: 220 bar
- Max filling pressure: 250 bar
- Accuracy: ≤ ± 1%
- Voltage: 230 Vac +/- 15% 50-60 Hz
- Flow light vehicles version Up to: 60 Kg/min
- Flow heavy vehicles version Up to: 100 kg/min
- Structure: Painted steel or AISI 304
- Colour: Standard or custom
